350-401 Exam - Implementing and Operating Cisco Enterprise Network Core Technologies

NEW QUESTION 1

A Cisco DNA Center REST API sends a PUT to the /dna/intent/api/v1/network-device endpoint A response code of 504 is received What does the code indicate?

• A. The response timed out based on a configured interval
• B. The user does not have authorization to access this endpoint.
• C. The username and password are not correct
• D. The web server is not available

Answer: A

NEW QUESTION 2

A firewall address of 192 166.1.101 can be pinged from a router but, when running a traceroute to It, this output is received

What is the cause of this issue?

• A. The firewall blocks ICMP traceroute traffic.
• B. The firewall rule that allows ICMP traffic does not function correctly
• C. The firewall blocks ICMP traffic.
• D. The firewall blocks UDP traffic

Answer: D

NEW QUESTION 3

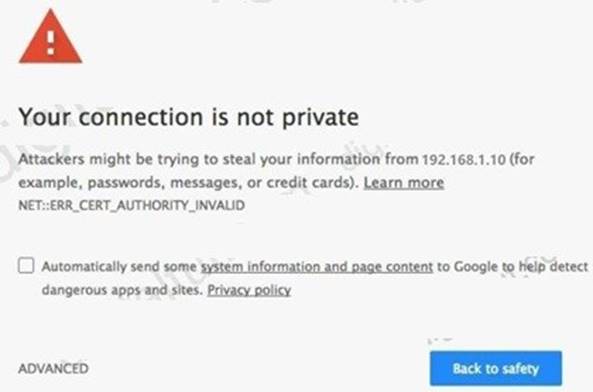

Refer to the exhibit.

An engineer is designing a guest portal on Cisco ISE using the default configuration. During the testing phase, the engineer receives a warning when displaying the guest portal. Which issue is occurring?

• A. The server that is providing the portal has an expired certificate
• B. The server that is providing the portal has a self-signed certificate
• C. The connection is using an unsupported protocol
• D. The connection is using an unsupported browser

Answer: B

NEW QUESTION 4

How do EIGRP metrics compare to OSPF metrics?

• A. EIGRP metrics are based on a combination of bandwidth and packet loss, and OSPF metrics are based on interface bandwidth.
• B. EIGRP uses the Dijkstra algorithm, and OSPF uses The DUAL algorithm
• C. The EIGRP administrative distance for external routes is 170. and the OSPF administrative distance for external routes is undefined
• D. The EIGRP administrative distance for external routes is 170. and the OSPF administrative distance for external routes is 110

Answer: A

NEW QUESTION 5
DRAG DROP
Drag and drop the virtual components from the left onto their deceptions on the right.

• A. Yes
• B. Not Mastered

Answer: A

NEW QUESTION 6

How must network management traffic be treated when defining QoS policies?

• A. as delay-sensitive traffic in a low latency queue
• B. using minimal bandwidth guarantee
• C. using the same marking as IP routing
• D. as best effort

Answer: A

Explanation:
Low latency queuing (LLQ) adds a priority queue to CBWFQ from which delay-sensitive traffic, such as voice traffic, can be transmitted ahead of packets in other queues.
By configuring the quality of service (QoS), you can provide preferential treatment to specific types of traffic at the expense of other traffic types. Without QoS, the device offers best-effort service for each packet, regardless of the packet contents or size. The device sends the packets without any assurance of reliability, delay bounds, or throughput.
The following are specific features provided by QoS:
✑ Low latency
✑ Bandwidth guarantee
✑ Buffering capabilities and dropping disciplines
✑ Traffic policing
✑ Enables the changing of the attribute of the frame or packet header
✑ Relative services
✑ Modular QoS Command-Line Interface
✑ Supported QoS Features for Wired Access
✑ Hierarchical QoS

NEW QUESTION 7

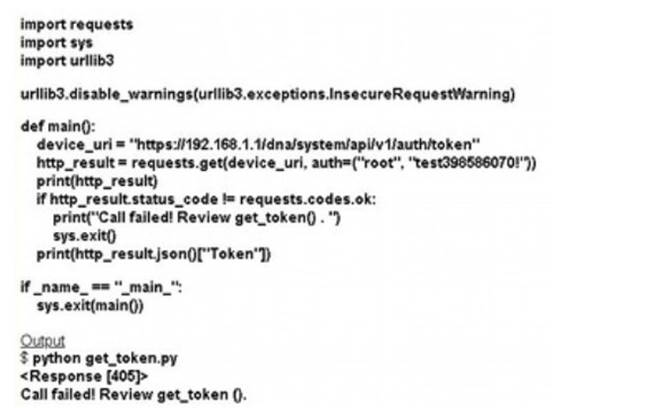

An engineer runs the code against an API of Cisco DMA Center, and the platform returns this output What does the response indicate?

• A. The authentication credentials are incorrect
• B. The URl string is incorrect.
• C. The Cisco DNA Center API port is incorrect
• D. The HTTP method is incorrect

Answer: D

Explanation:
https://developer.mozilla.org/en-US/docs/Web/HTTP/Status

NEW QUESTION 8

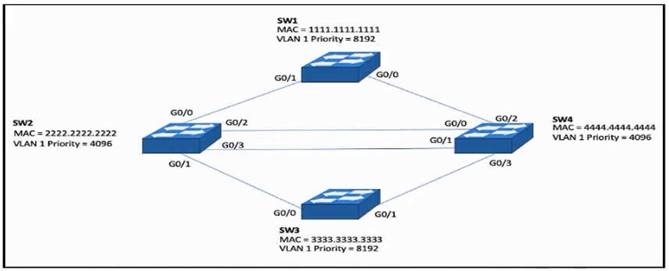

Refer the exhibit.

Which configuration elects SW4 as the root bridge for VLAN 1 and puts G0/2 on SW2 into a blocking state?
A)

B)

C)

D)

• A. Option A
• B. Option B
• C. Option C
• D. Option D

Answer: B

NEW QUESTION 9

What is the purpose of the LISP routing and addressing architecture?

• A. It creates two entries for each network node, one for Its identity and another for its location on the network.
• B. It allows LISP to be applied as a network visualization overlay though encapsulation.
• C. It allows multiple Instances of a routing table to co-exist within the same router.
• D. It creates head-end replication used to deliver broadcast and multicast frames to the entire network.

Answer: A

NEW QUESTION 10

Which there application has the ability to make REST calls against Cisco DNA Center?

• A. API Explorer
• B. REST Explorer
• C. Postman
• D. Mozilla

Answer: C

NEW QUESTION 11

What is the responsibility of a secondary WLC?

• A. It shares the traffic load of the LAPs with the primary controller.
• B. It avoids congestion on the primary controller by sharing the registration load on the LAPs.
• C. It registers the LAPs if the primary controller fails.
• D. It enables Layer 2 and Layer 3 roaming between Itself and the primary controller.

Answer: C

NEW QUESTION 12

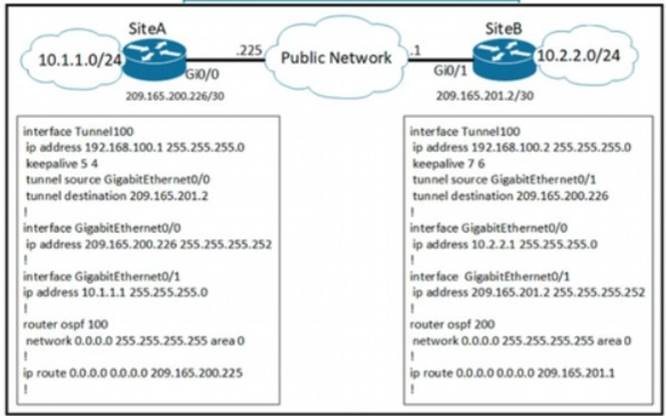

A network engineer configures a new GRE tunnel and enters the show run command. What does the output verify?

• A. The tunnel will be established and work as expected
• B. The tunnel destination will be known via the tunnel interface
• C. The tunnel keepalive is configured incorrectly because they must match on both sites
• D. The default MTU of the tunnel interface is 1500 byte.

Answer: B

NEW QUESTION 13

A large campus network has deployed two wireless LAN controllers to manage the wireless network. WLC1 and WLC2 have been configured as mobility peers. A client device roams from AP1 on WLC1 to AP2 on WLC2, but the controller's client interfaces are on different VLANs. How do the wireless LAN controllers handle the inter-subnet roaming?

• A. WLC1 marks me diem with an anchor entry In Its own databas
• B. The database entry is copied to the new controller and marked with a foreign entry on VVLC2.
• C. WLC2 marks the client with an anchor entry In Its own databas
• D. The database entry Is copied to the new controller and marked with a foreign entry on WLC1
• E. WLCl marks the client with a foreign entry in its own databas
• F. The database entry is copied to the new controller and marked with an anchor entry on WLC2.
• G. WLC2 marks the client with a foreign entry In its own databas
• H. The database entry Is copied to the new controller and marked with an anchor entry on WLC1.

Answer: B

NEW QUESTION 14

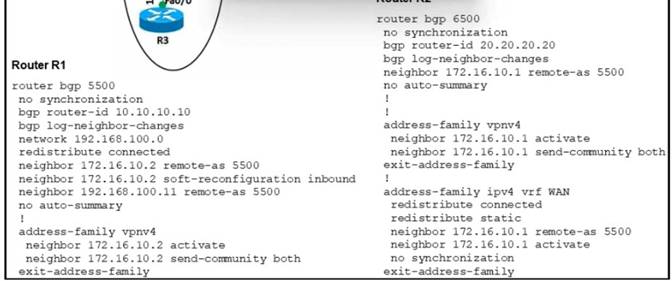

Refer to the exhibit.

An engineer configures the BGP adjacency between R1 and R2, however, it fails to establish Which action resolves the issue?

• A. Change the network statement on R1 to 172.16 10.0
• B. Change the remote-as number for 192 168.100.11.
• C. Enable synchronization on R1 and R2
• D. Change the remote-as number on R1 to 6500.

Answer: D

NEW QUESTION 15

A network administrator is implementing a routing configuration change and enables routing debugs to track routing behavior during the change. The logging output on the terminal is interrupting the command typing process. Which two actions can the network administrator take to minimize the possibility of typing commands incorrectly? (Choose two.)

• A. Configure the logging synchronous global configuration command
• B. Configure the logging delimiter feature
• C. Configure the logging synchronous command under the vty
• D. Press the TAB key to reprint the command in a new line
• E. increase the number of lines on the screen using the terminal length command

Answer: CD

NEW QUESTION 16

Which JSON script is properly formatted?
A)

B)

C)

D)

• A. Option A
• B. Option B
• C. Option C
• D. Option D

Answer: A

Explanation:
Option A is the properly formatted JSON script. JSON (JavaScript Object Notation) is a standard text-based format for representing structured data based on JavaScript object syntax. It is commonly used for transmitting data in web applications (e.g., sending some data from the server to the client, so it can be displayed on a web page, or vice versa). The JSON syntax rules are as follows12:
✑ Data is in name/value pairs, separated by commas. A name/value pair consists of a field name (in double quotes), followed by a colon, followed by a value: "name": "value".
✑ Curly braces hold objects. An object can contain multiple name/value pairs: {"name": "value", "name": "value", ...}.
✑ Square brackets hold arrays. An array can contain multiple values, separated by commas: ["value", "value", ...].
✑ Values can be strings (in double quotes), numbers, booleans (true or false), null, objects, or arrays.
Option A follows these rules and is a valid JSON script. It defines an object with four name/value pairs: "name", "age", "hobbies", and "address". The value of "name" is a string, the value of "age" is a number, the value of "hobbies" is an array of strings, and the value of "address" is another object with two name/value pairs: "city" and "country". The object is enclosed in curly braces and the name/value pairs are separated by commas.
Option B is not a valid JSON script because it uses single quotes instead of double quotes for the field names and string values. JSON requires double quotes for strings12.
Option C is not a valid JSON script because it does not use commas to separate the name/value pairs. JSON requires commas to separate the data elements within an object or an array12.
Option D is not a valid JSON script because it uses a semicolon instead of a colon to separate the field name and the value. JSON requires a colon to separate the name and the value in a name/value pair12. References: 1: JSON Introduction, 2: JSON Syntax

NEW QUESTION 17

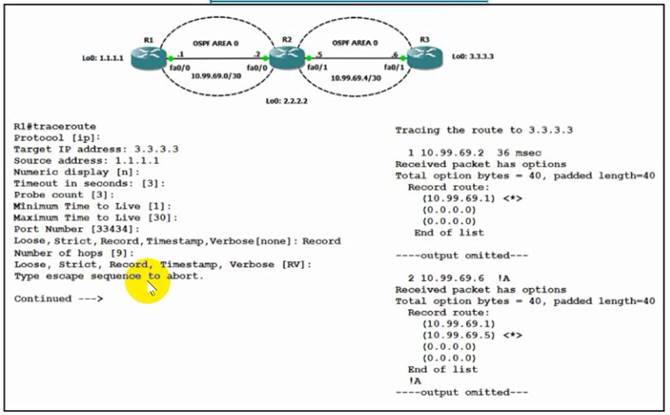

Refer to the exhibit.

The traceroute fails from R1 to R3. What is the cause of the failure?

• A. The loopback on R3 Is in a shutdown stale.
• B. An ACL applied Inbound on loopback0 of R2 Is dropping the traffic.
• C. An ACL applied Inbound on fa0/1 of R3 is dropping the traffic.
• D. Redistribution of connected routes into OSPF is not configured.

Answer: C

NEW QUESTION 18

An engineer must enable a login authentication method that allows a user to log in by using local authentication if all other defined authentication methods fail Which configuration should be applied?

• A. aaa authentication login CONSOLE group radius local-case enable aaa
• B. authentication login CONSOLE group radius local enable none
• C. aaa authentication login CONSOLE group radius local enable
• D. aaa authentication login CONSOLE group tacacs+ local enable

Answer: D
