350-401 Exam - Implementing and Operating Cisco Enterprise Network Core Technologies

NEW QUESTION 1

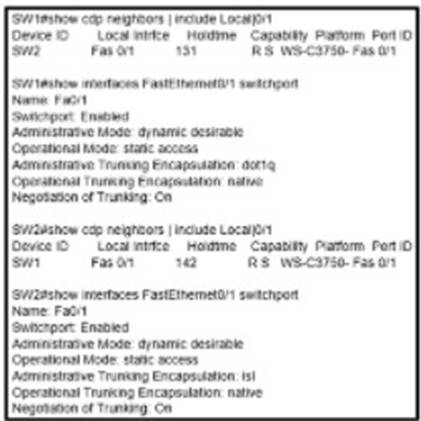

Refer to the exhibit.

An engineer configures a trunk between SW1 and SW2 but tagged packets are not passing. Which action fixes the issue?

• A. Configure SW1 with dynamic auto mode on interface FastEthernet0/1.
• B. Configure the native VLAN to be the same VLAN on both switches on interface FastEthernet0/1.
• C. Configure SW2 with encapsulation dot1q on interface FastEthernet0/1.
• D. Configure FastEthernet0/1 on both switches for static trunking.

Answer: C

NEW QUESTION 2

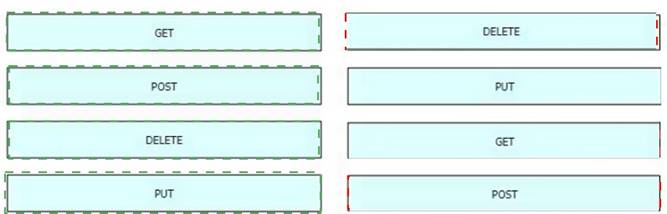

DRAG DROP

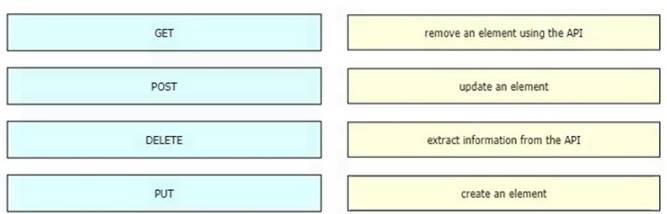

An engineer is working with the Cisco DNA Center API Drag and drop the methods from the left onto the actions that they are used for on the right.

• A. Yes
• B. Not Mastered

Answer: A

NEW QUESTION 3

What is the function of a VTEP in VXLAN?

• A. provide the routing underlay and overlay for VXLAN headers
• B. dynamically discover the location of end hosts in a VXLAN fabric
• C. encapsulate and de-encapsulate traffic into and out of the VXLAN fabric
• D. statically point to end host locations of the VXLAN fabric

Answer: C

NEW QUESTION 4

What is a characteristic of the Cisco DMA Center Template Editor feature?

• A. It facilitates software upgrades lo network devices from a central point.
• B. It facilitates a vulnerability assessment of the network devices.
• C. It provides a high-level overview of the health of every network device.
• D. It uses a predefined configuration through parameterized elements or variables.

Answer: D

Explanation:
This is because the Cisco DNA Center Template Editor feature is a tool that allows the network administrator to create and deploy configuration templates to multiple network devices. The configuration templates use parameterized elements or variables, which are placeholders for values that can be customized for each device. For example, a variable can represent the hostname, IP address, or interface number of a device. The parameterized elements or variables can be defined manually or automatically using the Cisco DNA Center inventory. The source of this answer is the Cisco ENCOR v1.1 course, module 8, lesson 8.5: Implementing Network Configuration Management.

NEW QUESTION 5

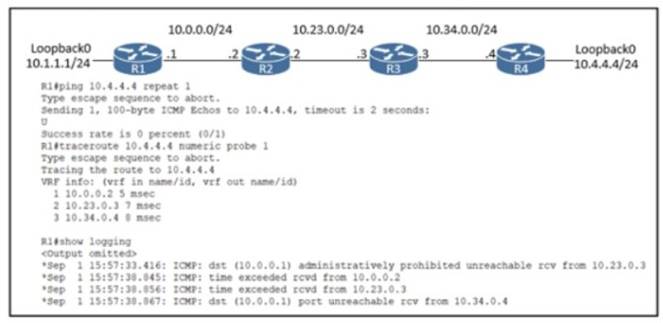

Refer to the exhibit. What is the cause of the communication failure between R1 and R4?

• A. R1 is configured with the no ip unreachables command.
• B. R2 is denying ICMP
• C. R4 is denying ICMP.
• D. R3 is denying ICMP.

Answer: A

NEW QUESTION 6

What is the structure of a JSON web token?

• A. three parts separated by dots: header payload, and signature
• B. header and payload
• C. three parts separated by dots: version header and signature
• D. payload and signature

Answer: A

Explanation:
JSON Web Token (JWT) is an open standard (RFC 7519) that defines a compact and self-contained way for securely transmitting information between parties as a JSON object. This information can be verified and trusted because it is digitally signed. JWTs can be signed using a secret (with the
HMAC algorithm) or a public/private key pair using RSA or ECDSA.
JSON Web Tokens are composed of three parts, separated by a dot (.): Header, Payload, Signature. Therefore, a JWT typically looks like the following:
xxxxx.yyyyy.zzzzz
The header typically consists of two parts: the type of the token, which is JWT, and the signing
algorithm being used, such as HMAC SHA256 or RSA.
The second part of the token is the payload, which contains the claims. Claims are statements
about an entity (typically, the user) and additional data.
To create the signature part you have to take the encoded header, the encoded payload, a secret,
the algorithm specified in the header, and sign that. Reference: https://jwt.io/introduction/

NEW QUESTION 7

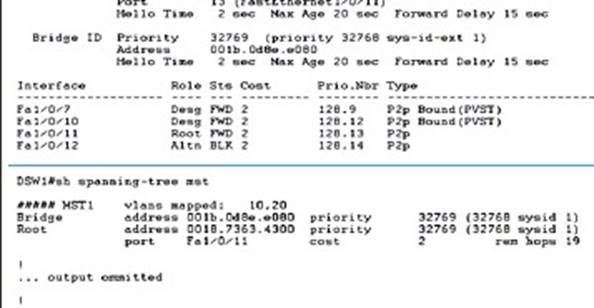

Refer to the exhibit.

Which two commands ensure that DSW1 becomes the root bridge for VLAN 10 and 20? (Choose two.)

• A. spanning-tree mst 1 priority 1
• B. spanning-tree mstp vlan 10.20 root primary
• C. spanning-tree mil 1 root primary
• D. spanning-tree mst 1 priority 4096
• E. spanning-tree mst vlan 10.20 priority root

Answer: DE

NEW QUESTION 8

A network administrator is designing a new network for a company that has frequent power spikes. The company wants to ensure that employees can the best solution for the administrator to recommend?

• A. Generator
• B. Cold site
• C. Redundant power supplies
• D. Uninterruptible power supply

Answer: D

Explanation:
This is because an uninterruptible power supply (UPS) is a device that provides backup power to a network device or a computer in case of a power outage or a power spike. A UPS can prevent data loss, corruption, or damage to the device by providing a smooth and continuous power supply. A UPS can also protect the device from power surges, brownouts, or voltage fluctuations. The source of this answer is the Cisco ENCOR v1.1 course, module 2, lesson 2.1: Implementing Device Hardening.

NEW QUESTION 9

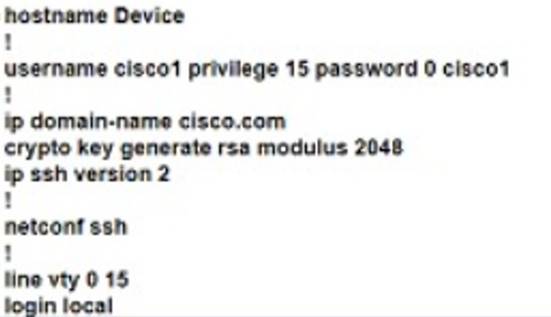

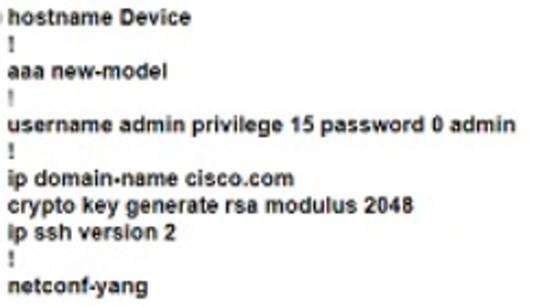

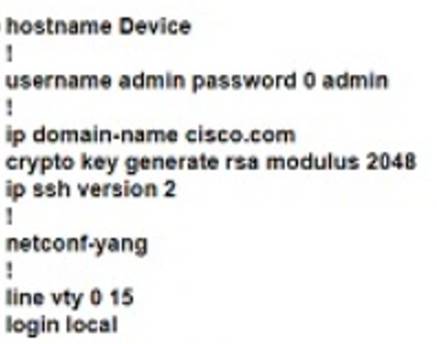

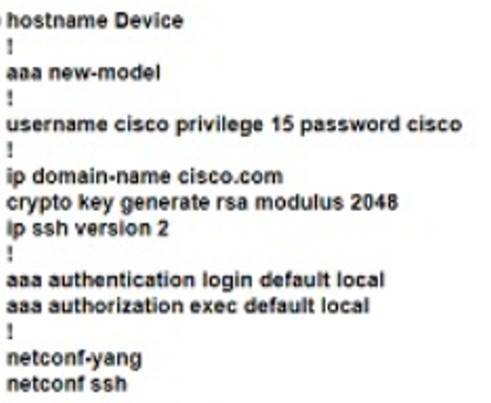

Which configuration enables a device to be configured via NETCONF over SSHv2?
A)

B)

C)

D)

• A. Option A
• B. Option B
• C. Option C
• D. Option D

Answer: C

NEW QUESTION 10

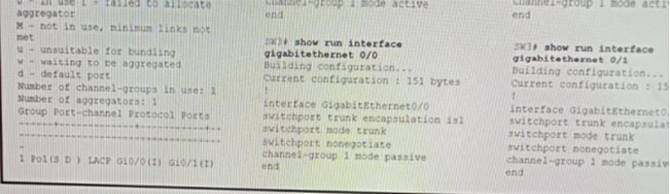

Refer to the exhibit.

The EtherChannel between SW2 and SW3 is not operational which action resolves this issue?

• A. Configure the channel-group mode on SW2 Gi0/1 and Gi0/1 to on.
• B. Configure the channel-group mode on SW3 Gi0/1 to active
• C. Configure the mode on SW2 Gi0/0 to trunk
• D. Configure the mode on SW2 Gi0/1 to access.

Answer: B

NEW QUESTION 11

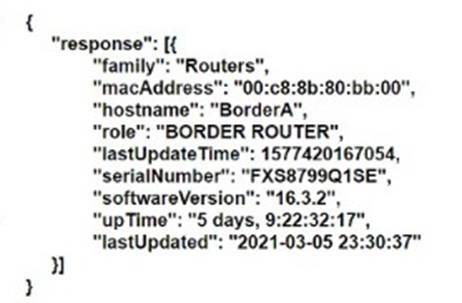

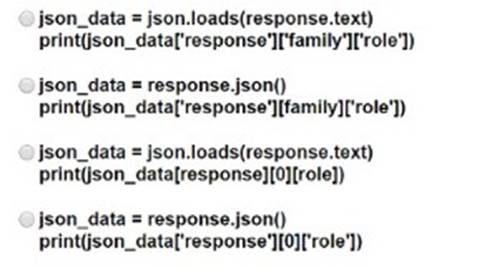

Based on the router's API output In JSON format below, which Python code will display the value of the 'role' key?

• A. Option A
• B. Option B
• C. Option C
• D. Option D

Answer: C

NEW QUESTION 12

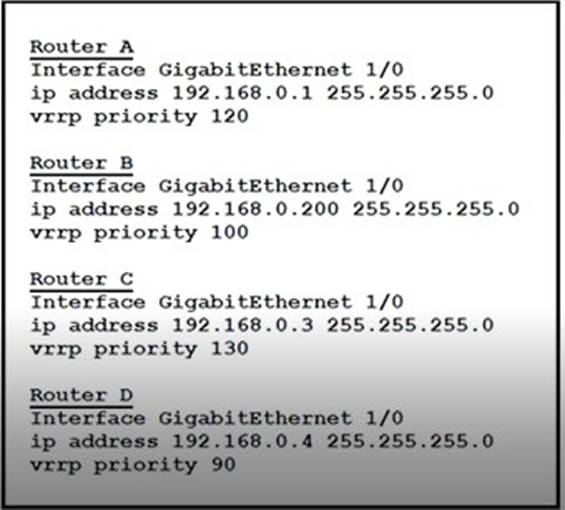

Refer to the exhibit. Which router is elected as the VRRP primary virtual router?

• A. Router B
• B. Router D
• C. Router C
• D. Router A

Answer: C

NEW QUESTION 13

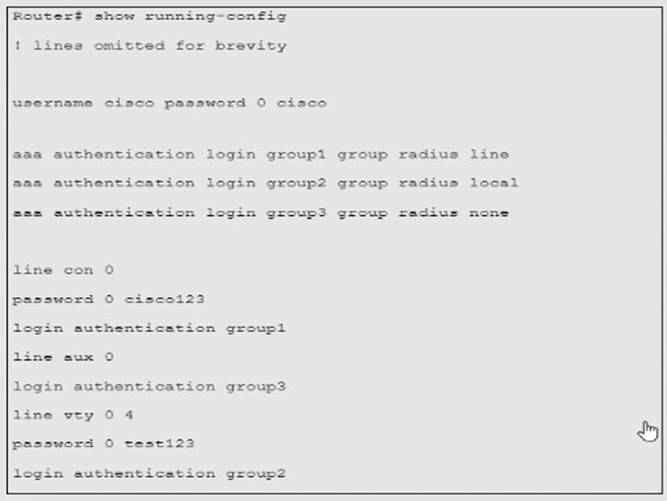

Refer to the exhibit.

A network engineer must log in to the router via the console, but the RADIUS servers are not reachable Which credentials allow console access1?

• A. the username "cisco" and the password "Cisco"
• B. no username and only the password "test123"
• C. no username and only the password "cisco123"
• D. the username "cisco" and the password “cisco123"

Answer: D

NEW QUESTION 14

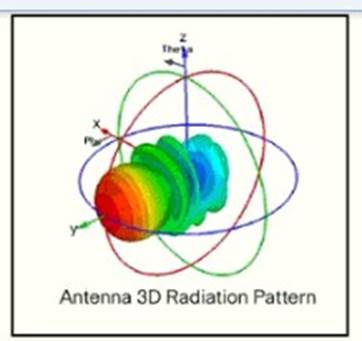

Refer to the exhibit.

Which type of antenna does the radiation pattern represent?

• A. Yagi
• B. multidirectional
• C. directional patch
• D. omnidirectional

Answer: A

NEW QUESTION 15

Which two characteristics define the Intent API provided by Cisco DNA Center? (Choose two.)

• A. northbound API
• B. business outcome oriented
• C. device-oriented
• D. southbound API
• E. procedural

Answer: AB

Explanation:
The Intent API is a Northbound REST API that exposes specific capabilities of the Cisco DNA Center platform. The Intent API provides policy-based abstraction of business intent, allowing focus on an outcome rather than struggling with individual mechanisms steps.
Reference: https://developer.cisco.com/docs/dna-center/#!cisco-dna-center-platform-overview/intent-api-northbound

NEW QUESTION 16

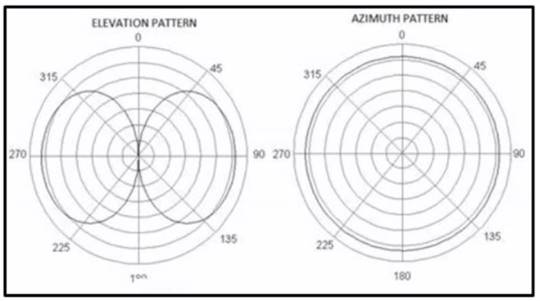

Refer to the exhibit.

Which antenna emits this radiation pattern?

• A. omnidirectional
• B. Yagi
• C. RP-TNC
• D. dish

Answer: A

NEW QUESTION 17

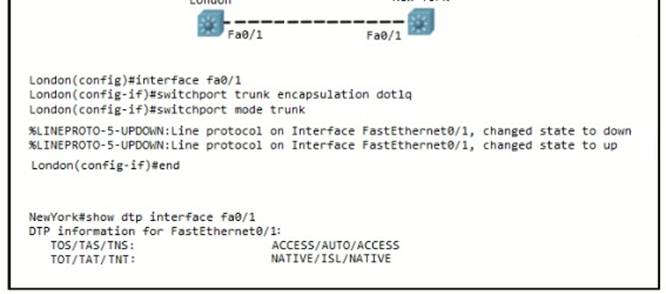

Refer to the exhibit

Communication between London and New York is down Which to resolve this issue?
A)

B)

C)

D)

• A. Option A
• B. Option B
• C. Option C
• D. Option D

Answer: A

Explanation:
https://learningnetwork.cisco.com/s/question/0D53i00000Ksyty/tostastns-tottattnt

NEW QUESTION 18

Which method should an engineer use to deal with a long-standing contention issue between any two VMs on the same host?

• A. Adjust the resource reservation limits
• B. Live migrate the VM to another host
• C. Reset the VM
• D. Reset the host

Answer: A
