JN0-363 Exam - Service Provider Routing and Switching Specialist (JNCIS-SP)

NEW QUESTION 1
Exhibit

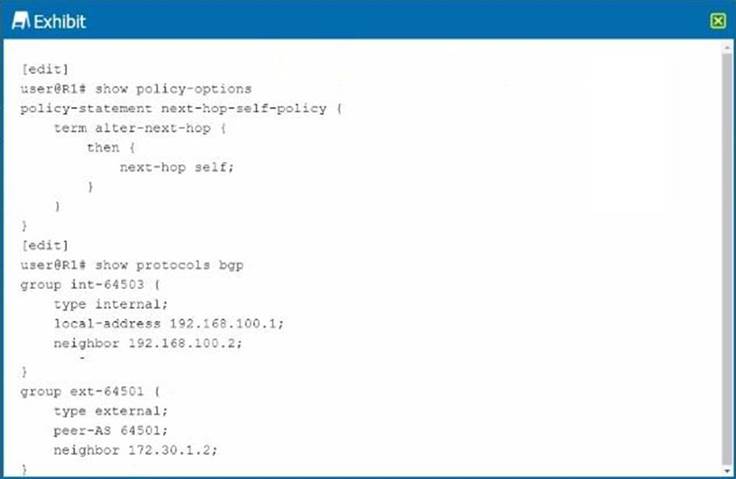

Referring to the exhibit, where should next-hop-self-policy be applied to alter the next-hop value?

• A. The policy is applied as an export policy for the group int-64503.
• B. The policy is applied as an export policy for the group ext-64501.
• C. The policy is applied as an import policy for the group int- 64 503.
• D. The policy is applied as an Import policy for the group ext-64501.

Answer: D

NEW QUESTION 2
Which statement is correct about IS-IS?

• A. IS-IS is a distance vector routing protocol.
• B. IS-IS is a path vector routing protocol.
• C. IS-IS is a link-state routing protocol.
• D. IS-IS is a classful routing protocol.

Answer: C

NEW QUESTION 3
An OSPF router does not have a router ID configured.
In this scenario, which statement is correct about the router ID?

• A. The Junos OS will use the IP address assigned to the interface with the lowest MAC address.
• B. A router ID will not be assigned until it is manually configured.
• C. The Junos OS will use the IP address assigned to the loopback interface for the router ID.
• D. The Junos OS will use the IP address assigned to the Interface with the highest priority.

Answer: B

NEW QUESTION 4
Exhibit

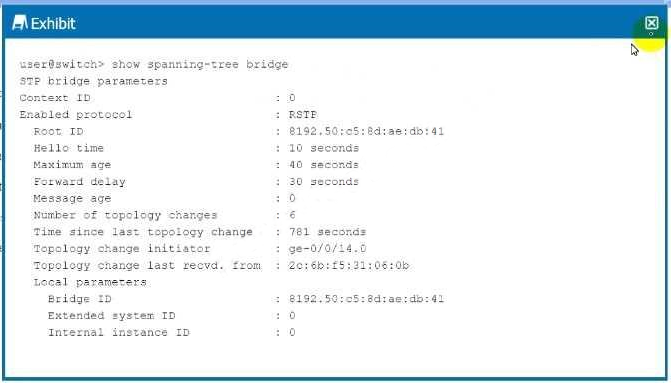

Which two statements ate correct about the information shown in the exhibit? (Choose two.)

• A. The root bridge is reachable using the ge-0/0/14 interface.
• B. This switch is the root bridge for this spanning tree topology.
• C. This switch has a bridge priority of 8k.
• D. The root bridge's priority Is 4k.

Answer: BD

NEW QUESTION 5
You are bringing a new network online with three IS-IS routers using default Junos election priorities. The routers are configured as Level 2 only IS-IS routers. Which statement is true about the DIS election in this scenario?

• A. The router with the highest MAC address will be elected as the DIS.
• B. The router with the highest numerical lo0 IP address will be elected as the DIS.
• C. The router with the lowest numerical lo0 IP address will be elected as the DIS.
• D. The router with the lowest MAC address will be elected as the DIS.

Answer: B

NEW QUESTION 6
Exhibit

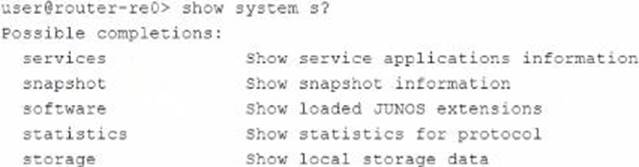

You have configured graceful RE switchover (GRES), however you cannot complete the show system switchover command.
Referring to the exhibit, what is the problem?

• A. The command is only available if non-stop routing is enabled.
• B. The command is only available on the backup Routing Engine.
• C. The command is only available If a backup router is configured.
• D. The command is only available If graceful restart is enabled.

Answer: B

NEW QUESTION 7
Exhibit

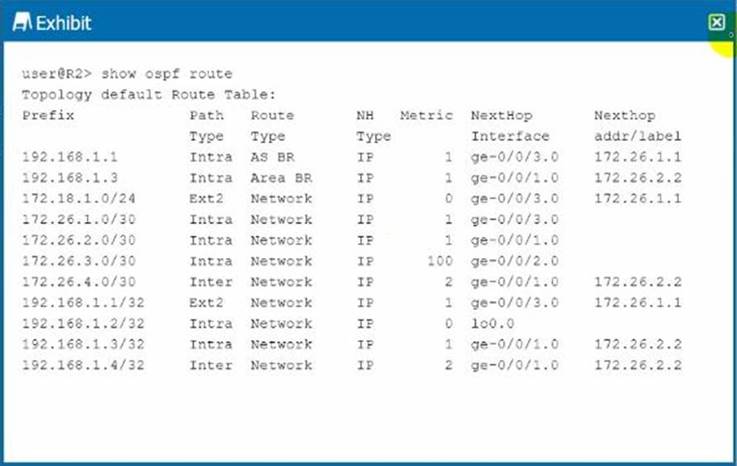

Which prefix in the output shown in the exhibit is an external prefix injected by an OSPF router?

• A. 192.168.1.3
• B. 172.18.1.0/24
• C. 192.108.1.4
• D. 172.26.4.0730

Answer: D

NEW QUESTION 8
Exhibit

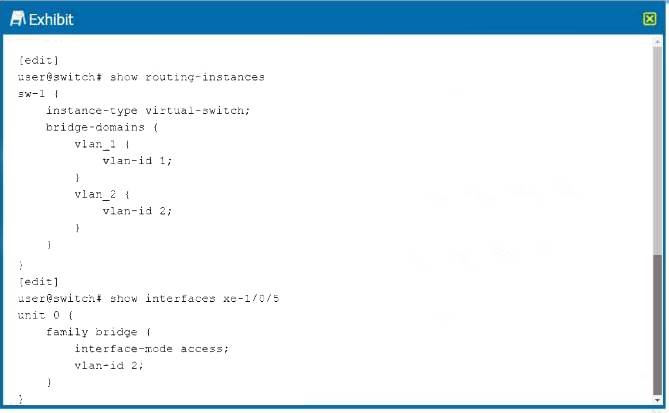

You are asked to assign interface xe-1/0/5 to a virtual switch. What must be accomplished to complete the configuration?

• A. Interface xe-1/0/5 must be added to routing-instance sw-1 vlan_2.
• B. Interface xe-1/0'5 must be a trunk port.
• C. Interface xe-1/0/5 must be added to routing-instance sw-1.
• D. An IRB interface must be configured to routing-instance sw-1 vlan_2.

Answer: C

NEW QUESTION 9
Which BGP attribute Is used to detect touting loops?

• A. AS path
• B. MED
• C. local preference
• D. next hop

Answer: A

NEW QUESTION 10
What are three well-known mandatory BGP attributes? (Choose three.)

• A. next hop
• B. origin
• C. community
• D. MED
• E. AS path

Answer: ABE

NEW QUESTION 11
Exhibit

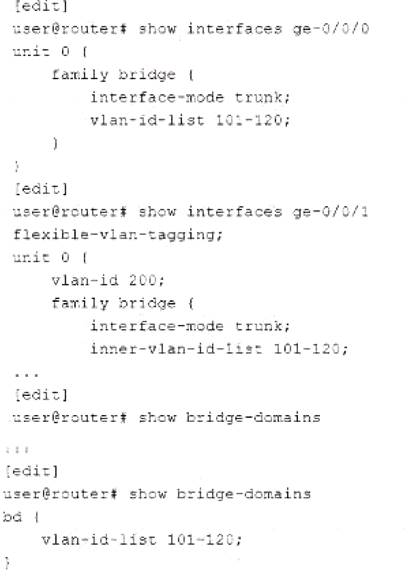

Referring to the exhibit, which two statements are correct? (Choose two.)

• A. Traffic ingressing ge-0/0/0 that is tagged with VLAN 101 will egress ge-0/0/1 unchanged.
• B. Traffic ingressing ge-0/0/0 that is tagged will VLAN 100 will be dropped.
• C. Traffic ingressing ge0/0/0 that Is tagged with VLAN 200 will egress ge-0/0/1 with an outer VLAN tag of 200.
• D. Traffic ingressing ge-0/0/0 that is tagged with VLAN 101 will egress ge-0/0M with an outer VLAN tag of 200.

Answer: AB

NEW QUESTION 12
Exhibit

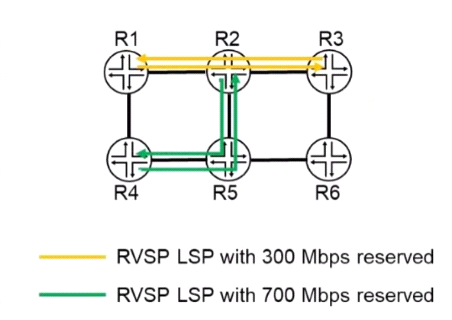

The exhibit shows a topology with 1 Gbps interfaces between routers, and four RSVP LSPs operating with the respective bandwidth reservations.
Which path will be selected for a new LSP from R4 to R6 with a bandwidth reservation of 400 Mbps?

• A. R4 -> R1 -> R2 -> R5 -> R6
• B. R4 -> R5 -> R6
• C. R4 -> R5 -> R2 -> R3 -> R6
• D. R4 -> R1 -> R2 -> R3 -> R6

Answer: A

NEW QUESTION 13
Which statement is correct about the FE80;:/10 prefix?

• A. This prefix range is used for the link local address.
• B. This prefix range is used on the loopback interface.
• C. This prefix range is reserved for multicast applications
• D. This prefix range is not reserved.

Answer: A

NEW QUESTION 14
Exhibit

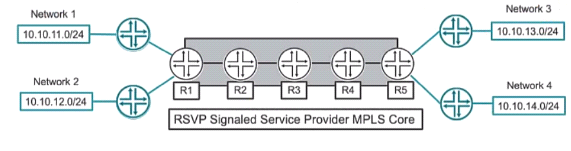

Referring to the exhibit, what is the minimum number of LSPs required to support alt four networks?

• A. 1
• B. 2
• C. 8
• D. 4

Answer: C

NEW QUESTION 15
What are three types of MPLS routers? (Choose three.)

• A. transit routers
• B. peering routers
• C. egress routers
• D. aggregation routers
• E. ingress routers

Answer: ACE

NEW QUESTION 16
Exhibit

The routers shown in the exhibit are configured for segment routing.
In this scenario, what is the adjacency SIO that Router B advertises to Router A?

• A. 12
• B. 10.1.1.1
• C. 10.1.1.2
• D. 11

Answer: B

NEW QUESTION 17
You are deploying link aggregation groups.

• A. By default, what are two considerations in this scenario? (Choose two.)
• B. There should only be four member links per LAG.
• C. All the ports must have the same speed.
• D. Member links are required to be contiguous ports.
• E. Member links can reside on different members within an MC-LAG.

Answer: BD
